Click to enlargeTeleCom Systems<a name="top">

Authors: Lawrence Harte, Avi Ofrane

Number of Pages: 480
Number of Diagrams: 224

Copyright: 2006

Printed or Electronic Version (12.3 MB) Available - Electronic Version has Color Diagrams


This book describes how telecommunications systems and services work and the markets associated with them. Telecommunications technology and services are continually changing. Descriptions and easy to understand diagrams of typical systems and their interconnections are provided for local exchange company (LEC), inter-exchange company (IXC), private telephone exchanges (PBX), computer networks (LANs), data networks (e.g. Internet), billing and customer care systems (BCC).

The book starts with more.....

Related Books

Diagrams

There are more than 224 explanatory diagrams in this book

Private Branch Exchange (PBX) System

This diagram shows a private branch exchange (PBX) system. This diagram shows a PBX with telephone sets, voice mail system, and trunk connections to PSTN. The PBX switch calls between telephone sets and also provides them switched access to the PSTN. The voice mail depends on the PBX to switch all calls needing access to it along with the appropriate information to process the call.


Digital Subscriber Line (DSL) System

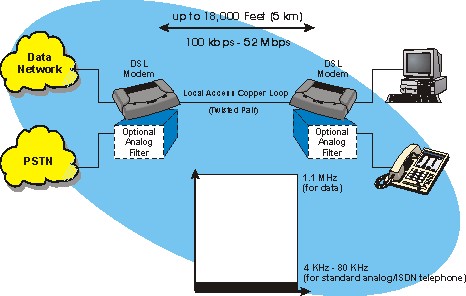

This figure shows a basic DSL system. This diagram shows that the key to DSL technologies is a more efficient use of the 1 MHz of bandwidth available on a single pair of copper telephone lines. A DSL system consists of compatible modems on each end of the local loop. For some systems, the DSL system allows for multiple types of transmission on a single copper pair. This includes analog or ISDN telephone (e.g., POTS) and digital communications (ADSL or VDSL). This diagram shows that there are basic trade offs for DSL systems. Generally, the longer the distance of the copper line, the lower the data rate. Distances of less than 1,000 feet can achieve data rates of over 50 Mbps.


IP Centrex System

This figure shows a basic IP Centrex system that allows a local exchange company (LEC) in New York City to provide Centrex services to a company in Los Angeles. In this diagram, the LEC in New York City uses a class 5 switch to provide for plain old telephone (POTS) and Centrex services to their local customers. The Centrex software is installed in the switch and existing Centrex customers in the local area continue to connect their telephone stations directly to the Class 5 switch. To provide Centrex services to new customers located outside the geographic area, the LEC has installed a network gateway in New York that can communicate with the customer gateway in Los Angeles. Because the network gateway converts all the necessary signaling commands to control and communicate with the customer gateway, the class 5 switch does not care if the customer gateway is in Los Angeles or Tokyo. It simply provides the Centrex services as the users request.
