Click to enlargeIntroduction to<br>Signaling System 7 (SS7)<a name="top">

SSP, STP, SCP, and SS7 Protocol Layers Operation

Authors: Lawrence Harte, Richard Dreher, David Bowler, Toni Beninger

Number of Pages: 138
Number of diagrams: 63

IPTV Magazine
Free Subscription



Printed or Electronic Version Available - Electronic Version has Color Diagrams

This book explains the basic operation of the signaling system 7 (SS7). SS7 is the standard communication system that is used to control public telephone networks. This book will help the reader gain an understanding of SS7 technology, network equipment, and overall operation. It covers the reasons why SS7 exists and is necessary, as well as step-by-step procedures that describe the actions that occur in the network. Introduction to Signaling System 7 (SS7) is for the technical and the semi-technical reader alike. Some of the most important topics featured are:

· SS7 network architecture including SSP, SCP, and STP operations
· Call processing control (ISUP) and broadband telephony applications (BISUP)
· Mobile application part (MAP)
· Transaction capabilities part (TCAP)
· Operations, Maintenance and Administration (OMAP)

Sample Diagrams

There are 63 explanatory diagrams in this book

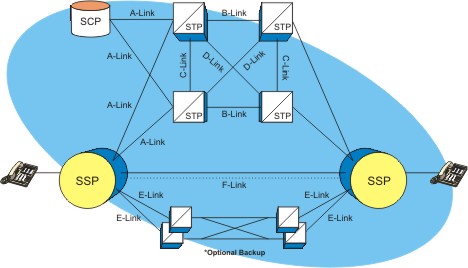

SS7 Signaling Link Types

This figure shows the relationship between the link names and the link location (type). Signaling links are logically organized by link type ("A" through "F") according to their use in the SS7 signaling network. The "A" (access) links connect the signaling end points (e.g., an SCP or SSP) to the STPs. Only messages originating from or destined to the signaling end point are transmitted on an "A" link. The "B" (bridge) links connect the STP to another STP. The "C" (cross) link connects STPs performing identical functions into a mated pair. "D" (diagonal) links connect the secondary (e.g., local or regional) STP pair to a primary (e.g., inter-network gateway) STP pair in a quad-link configuration. "E" (extended) links connect the SSP to an alternate STP. An "F" (fully associated) link is connected between two signaling end points (i.e., SSPs and SCPs).

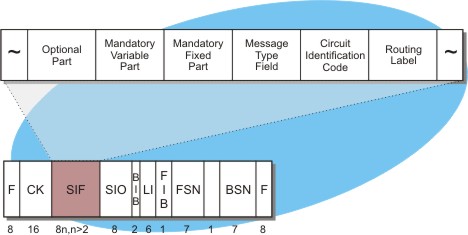

ISDN-UP Message Format

This figure shows that the ISDN-UP message is composed of a routing label (for call setup and delivery) connection identification code (for circuit identification), message type (control), mandatory parts (required parameters), and optional information (optional parameters).

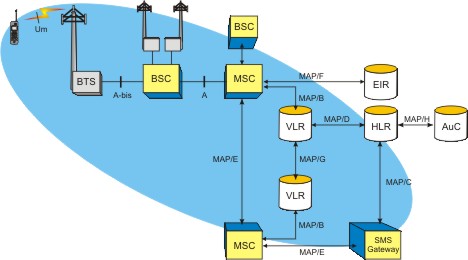

SS7 MAP Network

This illustration is a functional block diagram of a wireless network and how it uses MAP protocols between the equipments. This diagram shows that the different versions of SS7 MAP are used between network elements in a wireless network. It also shows that MAP is not used in the radio link. Instead, the relative parts of MAP are transformed into commands that can be sent on the radio links.
